A06B-6096-H204

Part Title:
A06B-6096-H204 - 2 AXIS ALPHA SERVO MODULE MDL SVM2-12/40
A06B-6096-H204 - 2 AXIS ALPHA SERVO MODULE MDL SVM2-12/40
Our Online Purchase Options:
  1. Buy New – The part we are selling has never been installed but has been tested by our techs. If a core exchange is offered, send in your core for a credit.
  2. Buy Refurbished – The part we are selling has been expertly repaired to OEM specifications and tested by our techs. If a core exchange is offered, send in your core for a credit.
$3,300.00
0.00
In Stock

Applies to orders placed prior to Noon CST and shipped via FedEx or UPS. May not apply to orders shipped via freight. Expedited processing may be available – contact customer service with questions.

Order by Phone: (615) 471-9450
Request a Quote
Warranty Icon
All parts backed by a 1 year in-service warranty
Refurbished Ribbon
Certified Refurbished More than 35 years of refurbishment expertise
Load tested icon
All refurbished parts tested under load
Stop watch icon
Fast response, expedited shipping available
Parts icon
More than 150,000 parts in stock & ready for delivery

Description

This Part is Tested Under Maximum Rated Load to ensure the highest quality standards. - Click Here to learn more.


  • Part Number: A06B-6096-H204
  • Description: 2 AXIS ALPHA SERVO MODULE MDL SVM2-12/40
  • Product Series: A06B-6096
  • Availability: Available, call for lead time
  • Core Exchange: Required
  • Repair: Yes
  • Special Note: If the sram (software update) is needed, a refundable deposit of $500.00 is required.

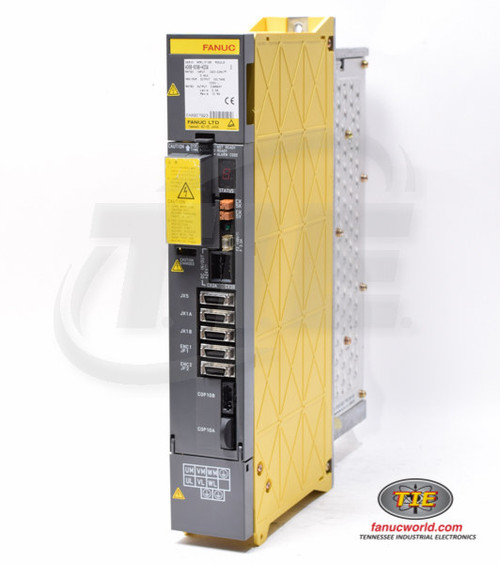

FANUC A06B-6096-H204 Servo Amplifier Module

The FANUC A06B-6096-H204 Servo Amplifier Module is a dual axis Alpha Servo Drive Model SVM2-12/40. As part of the A06B-6096 generation of AC Servo Drives, the FANUC A06B-6096-H204 Servo Amplifier Module is normally fitted with i series FANUC controls 15i, 16i, 18i, 20i, 21i, or above. The FANUC A06B6096H204 Drive typically powers 2/2000(12) and 3/3000(40S) FANUC Motors.

FANUC A06B-6096-H204 Power Specifications

The FANUC A06B-6096-H204 Servo Amplifier Module powers at a rated input of 283-325V (3.4kW) and a maximum output voltage of 230V. The rated output current for the FANUC A06B-6096-H204 is 3.0A on the L axis and 12.5A on the M axis.


Repair Specific Instructions:

We offer repair services for this part. When you purchase this option online:
  1. What you pay today is the cost of shipping and the flat-rate repair fee (if applicable)
  2. We will provide you with a shipping label and a parts shipper – be sure to include the parts shipper in the box.
  3. Once the checkout process has been completed you should expect two emails - an order confirmation email and a second email with your shipping label and important instructions.
  4. Once the part arrives at our office, we will contact you with additional information – if flat-rate repair is not available we will provide you with a separate repair quote.
