Part Title:

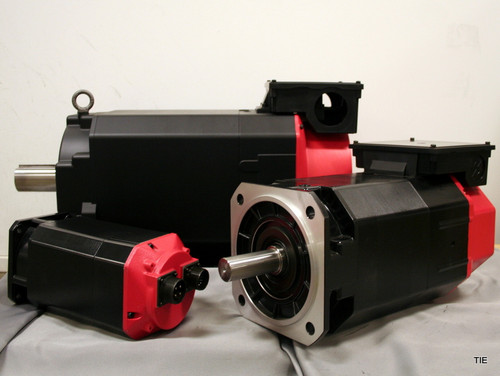

A06B-2509-B103 - AC SPNDL MDL aiI 15/8,000HV-B, FLANGE, SLK, aiMZ, REAR

Not available online

Complete this form for a free quote

Start your Quick Quote
Thank you Thank you for contacting TIE-FANUCWORLD. We are diligently working on your request and will respond shortly.

If you need to speak with one of our friendly and knowledgeable customer service representatives, please call (877)876-3994, and we will be happy to assist you.

Our hours of operation are:Monday - Friday, 7:00 am - 7:00 pm Central TimeSaturday, 8:00 am - 12:00 pm Central Time.

We appreciate and value your business.


Part Number: A06B-2509-B103
Description: AC SPNDL MDL aiI 15/8,000HV-B, FLANGE, SLK, aiMZ, REAR
Product Series: A06B-2509

Availability: Call for availability
Core Exchange: Optional
Repair: Yes

The A06B-2509-B103 AC SPNDL MDL aiI 15/8,000HV-B, FLANGE, SLK, aiMZ, REAR is a high-performance product designed for various industrial applications. With its advanced features and durable construction, it ensures reliability and precision in every operation.

Equipped with a tapered shaft (TPR), this spindle model provides increased strength and stability, allowing for efficient power transmission. The inclusion of a brake (BRK) adds an extra layer of safety by securely holding the spindle in place when not in use, preventing any unintended movements.

The keyed shaft (Key) feature allows for precise and accurate positioning, making it ideal for applications where specific alignment or synchronization is required. The slick shaft (SLK) design further enhances flexibility and ease of use, minimizing friction and ensuring smooth rotation.

The aiMZ functionality incorporated in this product provides added versatility and control. With its incremental encoder (INC), users can accurately measure position changes, enabling precise adjustments and consistent performance.

Featuring a flange mount (FLANGE), this spindle model offers a practical and efficient solution for installation and mounting. The straight (ST) design enables easy integration into existing systems, reducing the need for complex modifications.

Additionally, the A06B-2509-B103 comes with a rear orientation, further enhancing its adaptability to various setups and applications. Whether as a replacement part or a new installation, this spindle model provides dependable and consistent performance.

Please note that due to its size and weight, this product must be shipped via freight. To check the availability and discuss shipping options, please contact our sales team. We also offer a core exchange option and repair services to ensure the longevity and usability of your spindle.

Overall, the A06B-2509-B103 AC SPNDL MDL aiI 15/8,000HV-B, FLANGE, SLK, aiMZ, REAR is a robust and versatile product that guarantees exceptional performance and reliability in industrial environments.

Repair Specific Instructions:

We offer repair services for this part. When you purchase this option online:
  1. What you pay today is the cost of shipping and the flat-rate repair fee (if applicable)
  2. We will provide you with a shipping label and a parts shipper – be sure to include the parts shipper in the box.
  3. Once the checkout process has been completed you should expect two emails - an order confirmation email and a second email with your shipping label and important instructions.
  4. Once the part arrives at our office, we will contact you with additional information – if flat-rate repair is not available we will provide you with a separate repair quote.
